Specialized Square Hole Full Stroke Pneumatic Rotary Precision Chuck For CNC Lathes
  • Name
  • Name
  • Name

Specialized Square Hole Full Stroke Pneumatic Rotary Precision Chuck For CNC Lathes

MOQ: 1 Satz
Preis: USD 2428.57 set
Standardverpackung: Holzkarton
Lieferfrist: 10-15 Arbeitstage
Zahlungs-Methode: T/T, L/C
Lieferkapazität: 500 Set pro Monat
Detail-Informationen
Produkt-Beschreibung
Einzelheiten
Herkunftsort
China
Markenname
LINGMAN
Zertifizierung
Provided
Modellnummer
F130DF
Klauenhub/Durchmesser:
124 mm
Maximale Klemmkraft:
0,6 Kn
Zulässiger Druck:
0,2-0,9mpa
Geschwindigkeit begrenzen:
200r/min
Klemmgebiet:
4-128 mm
Zentrale Höhe:
235 mm
Rotationsträge:
1,42 kg.m²
Rotierendes Teilgewicht:
71 kg
Ganzes Gewicht der Einheiten:
134 kg
Hervorheben:

Precision Pneumatic Rotary Chuck

,

CNC Lathe Pneumatic Rotary Chuck

,

Specialized Pneumatic Rotary Chuck

Produkt-Beschreibung

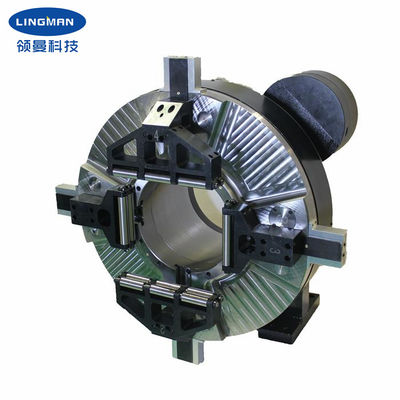

Rotary Full Stroke Pneumatic Laser Chuck for Pipe Cutting Machine



1. Description



Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.

Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.



This model laser chuck is designed for laser pipe cutting equipment, four jaw full stroke main chuck. The chuck itself can be operated as an independent rotating spindle. After the product base is fixed, it only needs to connect the supporting motor and gear, and then connect the compressed air source to clamp the workpiece and drive the workpiece to rotate. Chuck full stroke operation, no need to adjust the position of the four jaws. The chuck adopts a fully enclosed structure with cross roller bearings. Compared with similar products on the market, the chuck has higher rotation accuracy and repetition accuracy, as well as higher gripping force.



The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.



2. Performance Parameters

Model number F130DF
Jaw stroke/diameter 124mm
Max. clamping force 0.6KN
Allowable pressure 0.2-0.9MPa
Clamping range 4-128mm
Central height 235mm
Rotational inertia 1.42Kg.m²
Rotating part weight 71kg
Whole unit weight 134kg





Note: above numbers are standard parameters. We can also design products according to clients' special requirements.

​3. Dimensions

Specialized Square Hole Full Stroke Pneumatic Rotary Precision Chuck For CNC Lathes 0

Specialized Square Hole Full Stroke Pneumatic Rotary Precision Chuck For CNC Lathes 1







Specifications A B B1 C D E F G H
F130DF 430 235 440 620 120 80 368 272 130















4. Advantages



a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws



5. Our Service



a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.



6. Production Line

Specialized Square Hole Full Stroke Pneumatic Rotary Precision Chuck For CNC Lathes 2

Specialized Square Hole Full Stroke Pneumatic Rotary Precision Chuck For CNC Lathes 3

Specialized Square Hole Full Stroke Pneumatic Rotary Precision Chuck For CNC Lathes 4



Umbauten:

Pneumatisches Drehbankfutter mit 4 Kiefern Metall,

160mm pneumatische Drehklemme,

4.5KN 100mm Planscheibe mit 4 Kiefern
